Small SUS304 Speed ​​Gate Face Recognition Office Door Brushless Motor Glass Turnstile For Lobby

1 Piece
MOQ
Small SUS304 Speed ​​Gate Face Recognition Office Door Brushless Motor Glass Turnstile For Lobby
Характеристики Галерея Характер продукции Спросите цитату
Характеристики
Характеристики
Model Number: TDZ-B238S
Product name: speed gate
Material: SUS304
Color: Silver
Size: 800---1400*160*1000mm
Surface treatment: Brushed
Weight: 100kg
Warranty: 1 Year
Key words: speed gate, swing barrier.
Speed: 35persons/min
Package: Wooden Box
Основная информация
Model Number: TDZ-B238S
Оплата и доставка Условия
Packaging Details: wood box packages. Tongdazhi Servo motor RFID smart card qr code barcode automatic high pass speed turnstile barrier gate.
Характер продукции

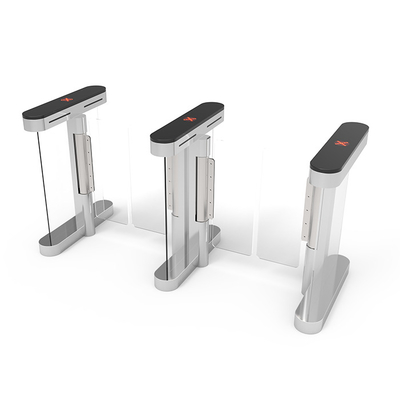

Small speed gate face recognition office gate brushless motor glass turnstile for lobby

Products description

Swing Speed Turnstiles offer a reliable and efficient method to ensure only authorized users are allowed access to each area of a building.

The TDZ-B238S is an attractive swing turnstile that is small and beautiful . The compact unit makes it simple to construct a multiple lane set-up

while the variety in colors allows you to match this turnstile perfectly to your lobby or branding, it drive by servo motor default ,accurate position and no noise

will provide you a better use feeling.

Products Description:

Feature

1. By using 6 pairs of military level high-performance infrared sensors and exact algorithms. It can accurately

detect the user's passing position to achieve the purpose such as anti-tailing. Anti-reverse passing and

anti-clamping etc.

2. Using the multiple anti-clamping designs to protect the personal safety of passengers in maximum limit

3. The widen lane is optional for carrying luggage and wheelchair access.

4. Equipped with the dry contact signal input interface, compatible with all kinds of access controllers.

5. It will alarm when break in illegally,followed by people,passed overtime,damaged for equipment.

6. After swiping card in normal condition, if within the permitting time passages do not pass, the system

will cancel the users’ pass right and arm close automatically

7. Arm automatically open when the power off to make sure safety In case of emergency

8. Optional for external counter to record the people numbers for each lane

Parameters

Structure parameters

Housing material

304 grade stainless steel

Thickness

1.5/2.0mm

Surface treatment

Brushed finish

Arm material

Acrylic

Technical parameters

Size

800---1400*160*1000mm

Lane width

550--850mm

Passing speed

35--50 people/min

Open/close speed

0.1--0.6sec

Weight

95KG

Turning angle

90 degree

infrared sensors

6 pairs

MCBF

10.000.000 times

Application

Indoor or outdoor

Rotating directional

Single way or Bi-directional adjustable

Noise

<55db

Operating temperature

-25 to 70℃

Relative humidity

5% to 95%

Package

Carton box inside. Wooden case outside

Electronic parameters

Power supply

220V, 50HZ

Input signal

Dry contact

Driving motor

Servo Motor with planetary reducer

Method of position

Encoder to make sure accurate position

Demesion:

Company Introduce

Shenzhen Tongdazhi Technology Co., Ltd. is a national high-tech enterprise integrating R&D, production,

sales and service. Since its establishment in 2009, the company has been dedicated to becoming a

one-stop service provider for solutions for access control equipment, smart access control systems,

ticket management systems, human-card identification systems, parking systems, and anti-terrorism

roadblock equipment. We develop, design and produce advanced and mature access control systems.

We provide customized hardware and software products and reliable and stable system for customers.

We have independent import and export rights, and our products have been sold in more than

80 countries and regions. We are willing to cooperate with you and share win-win situation to create

a bright future for internet security business.
