Factory Wholesale RFID Automatic Glass Turnstiles Detection Access Control Swing Turnstile

1.0 Pieces
MOQ
Factory Wholesale RFID Automatic Glass Turnstiles Detection Access Control Swing Turnstile
Характеристики Галерея Характер продукции Спросите цитату
Характеристики
Характеристики
Model Number: AG-HX36141802
Material: SUS 304 stainless steel
Access Width: 550mm
Access Direction: Single directional/Bi-directional
Driving Mode: brushless DC motor
Reacting Time: 0.2S
Throughput Rate: 30p/m
Instruction: Acoustic alarming, Indicator LED
Communication: TCP/IP
Power Input: AC220V 50Hz
Product Size: 1400*180*1020mm
Основная информация
Model Number: AG-HX36141802
Оплата и доставка Условия
Packaging Details: polyfoam + carton + wooden case
Supply Ability: 5000 Piece/Pieces per Month
Характер продукции

Stainless Steel Electric Swing Gate Turnstile with Arc Design for High-end Scenes

Acrylic wing+304 stainless steel+Area of card reading installation


Specification

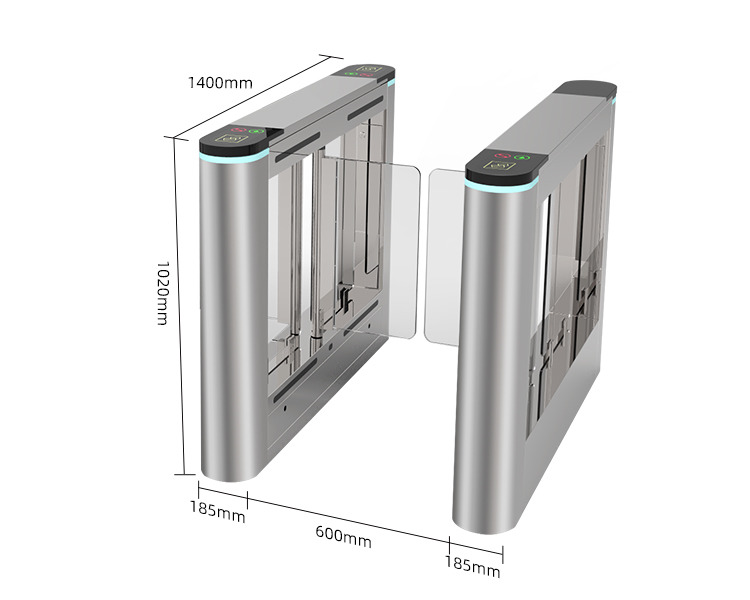

Dimension
1400x180x1020mm
Material
SUS 304 stainless steel
Motor
Brushless anti-collision motor
Access width
600mm
Access direction
Single directional/bi directional
Access rate
25~30 p/m
Operating temperature
-20℃~70℃ indoor
Drive voltage
DC24V 6.25A
Indication way
Acoustic alarming; LED indicator
Gate opening speed
0.2s

Product Features

AG-HX36141802 swing turnstile gate applies stainless steel materials which is carefully selected and manufactured with great workmanship, so it owns characteristics of heat-resistance, abrasion-resistance and good rust-proofing and can be used for a long term. We support appearance customization for the gate according to customer demands.

This auto turnstile barrier gate applies DC brushless anti-collision motor movement which integrates good mechanical performance, wide speed adjustment range and long lifespan etc. characteristics. In addition, it also owns easy maintenance and small noise. The gate MCBF is 5M time and is almost impossible to occur fault during this cycle because of its brushless motor. The motor integrates characteristics of low power consumption, automatic speed increasing, low noise operation and fully enclosed structure.

Product Functions

1. The pedestrian passing swing turnstile barrier owns power-on fault self inspection and automatic resetting function .
2.Control signal or button or remote control of the peripherals is available to achieve control accessing in single direction/bi direction.
3. Auto-resetting function: the swing arm of the swing turnstile gate will back in position automatically after human and object passing is detected. The system will cancel the passing authorization automatically if there is no accessing within ruled time.
4. It is equipped with high brightness LED accessing indicator and infrared anti-pinch function
5. Alarming reminder function: It can send alarming reminder automatically when there is unauthorized passing or rushing to the gate
6. Adjustable speed: The opening and closing speed of swing arm is adjustable and you can set it according to actual demands.
7. New generation of industrial ARM control system of the gate possesses digital settings, encrytion and resetting functions.
8. Function of reverse rotating prevention: If it occurs external force reversed the swing arm, the swing arm will automatic
startup reverse thrust and alarming. The swing arm will return to zero position automatically to recover passing after external force removed.
9. Auto-protection function: If there is a consecutive external force hindered the movement of swing arm, the system will enter dormant state after auto-inspection for 20s until the next legal access signal inputted, then the turnstile gate will recover to normal state.
10.Unmanned guarding: The swing arm will open automatically after power-off and will automatically open after power-on.
Applicable Cases
